PIV YKCS11 Module
Yubico YKCS11 is a PKCS#11 module that allows external applications to communicate with the PIV application running on a YubiKey.
This module is based on version 2.40 of the PKCS#11 (Cryptoki) specifications. The complete specifications are available at oasis-open.org > PKCS #11 Cryptographic Token Interface Base Specification Version 2.40.
Building
YKCS11 is automatically built as part of yubico-piv-tool. For example:
$ mkdir build; cd build
$ cmake ..
$ make
$ sudo make install
For additional information about building yubico-piv-tool, Set up PIV Tool.
After the yuvico-piv-tool is installed, the default location for the ykcs11 module is: /usr/local/lib/libykcs11.so. Optionally, you can be built it locally in yubico-piv-tool/build/ykcs11/libykcs11.so.
Portability
The module has been developed and tested using Ubuntu Linux, MacOS, and Windows. Both MacOS and Windows use PCSC as a backend.
YKCS11 on Windows
After installing yubico-piv-tool using the Windows installer, add the Yubico PIV Tool\bin directory to the system path, so other applications can load it. This is also recommended, because the libykcs11.dll is dynamically linked to libykpiv.dll and libcrypto-1_1.dll, and setting the system path enables ykcs11 to access both of them.
On Windows 10, to set the system path:
- Go to Control Panel > System and Security > System > Advanced system setting.
- Click Environment Variables.
- Under System Variables, highlight Path and click Edit.
- Click New and add the absolute path to
Yubico PIV Tool\bin.
Alternatively, if you do not want to set the system path, copy libykpiv.dll and libcrypto-1_1.dll into the same directory as the application that needs to access the ykcs11 module.
A Note for Developers
If LoadLibrary is called with an absolute path, it does not look for dependencies of the specified DLL in that directory, but rather in the startup directory of the application that calls LoadLibrary. The solution is to either:
- Call
LoadLibraryExwith the flagLOAD_WITH_ALTERED_SEARCH_PATHfor absolute paths. - Add the directory where ykcs11 is located to the system PATH.
- Copy the dependencies into the application directory.
Note
Calling LoadLibraryEx with the LOAD_WITH_ALTERED_SEARCH_PATH flag for a non-absolute path is undefined behavior according to MicroSoft documentation.
For example, Pkcs11Interop sets a variable to LOAD_WITH_ALTERED_SEARCH_PATH if the path looks absolute, and 0 otherwise. After that, it always calls LoadLibraryEx. This means, if the flag is 0 then LoadLibraryEx behaves exactly like LoadLibrary.
Key Mapping
The ykcs11 module provides access to all 25 keys that can be stored on the YubiKey PIV application. These keys correspond to the keys in the PIV slots as described in PIV Certificate Slots and are accessible through yubico-piv-tool.
The mapping is as follows:
| ykcs11 id | PIV |
|---|---|
| 1 | 9a |
| 2 | 9c |
| 3 | 9d |
| 4 | 9e |
| 5 - 24 | 82 - 95 |
| 25 | f9 |
Key Generation
Key pair generation is a particular operation, in the sense that within PIV this is the only moment where the newly created public key is given back to the user. To prevent the key from being lost, it is automatically stored within the YubiKey by wrapping it in an X.509 certificate.
Attestation Certificates

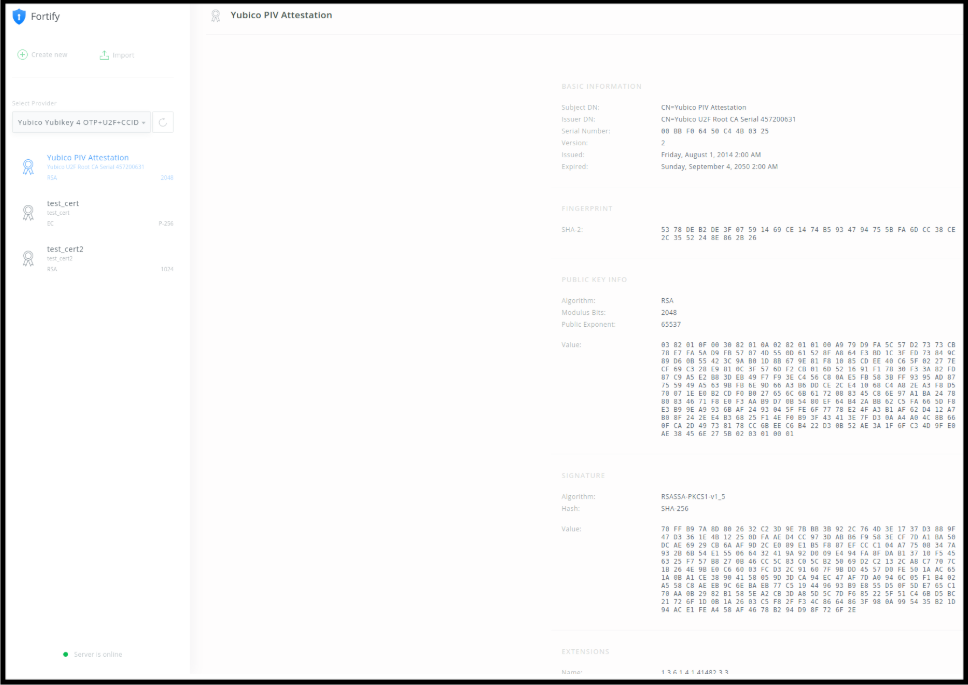

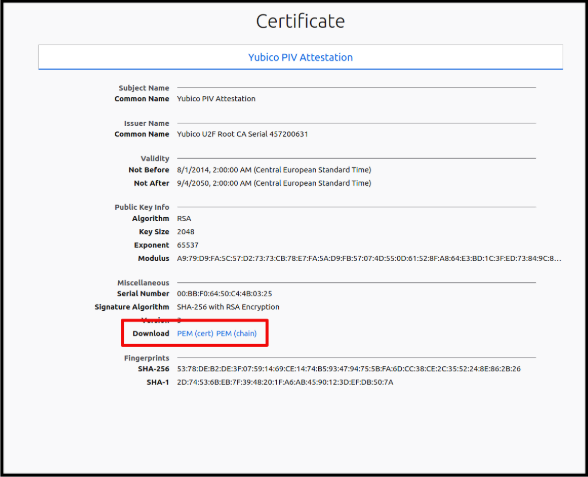

Attestation certificates are also accessible with the YKCS11 module. An attestation certificate is a regular X509 Certificates that has the same CKA_ID and public key as the key it is attesting. Attestation certificates, however, are not stored in the YubiKey (CKA_TOKEN is FALSE) and are generated when accessed.
For more details about attestation, see PIV Tool Attestation and Action, attest.
User Types
YKCS11 defines two types of users: a regular user and a security officer (SO). These are mapped to perform regular tasks for the private key material (PIN-associated operations) and device management (management-key associated operations).
PINs and Management Key
- The default user PIN for the YubiKey is
123456. - The default management key is
010203040506070801020304050607080102030405060708.
To perform operations involving the private keys, a regular user must be logged in (using the PIN or fingerprint). However, given the different PIN policies for different keys, subsequent operations might require a new login. This is supported by the module through the CONTEXT_SPECIFIC user in accordance with the specifications.
Keys with PIN policy “never”
It is possible to skip PIN verification when using keys with PIN policy “never” by using VERIFY_NONE as a PIN.
Fingerprint Authentication with YubiKey Bio
It is also possible to use the fingerprint reader on the YubiKey Bio to login. Attempting to login with an empty PIN triggers a bio verification. The user is then expected to scan their fingerprint. Note: there might not be an indication on the screen that a fingerprint scan is expected, but the YubiKey blinks while it waits for a fingerprint scan. Bio verification can also be triggered by using VERIFY_BIO as a PIN.
OpenSSL
The YubiKey only supports functions that require an asymmetric private key. Functions that do not, like encryption, signature verification, hashing and generation of a random number, are done by OpenSSL.
Additionally, the YubiKey only performs raw decryption and signature. When padding is used, for example OAEP and PSS padding, applying and removing the padding is handled using OpenSSL functions.
Testing
Apart from the internal tests, the YKCS11 has also been tested with the Pkcs11Interop .NET library.
Debugging
By default, the ykcs11 module has debugging disabled. Debugging is highly verbose and might be confusing.
To enable debugging of the ykcs11 module, set the variable YKCS11_DBG to a numerical value 1 to 9. The value 0 indicates disabled debugging.
Set YKCS11_DBG for debugging, using one of the methods:
Set the environment variable
YKCS11_DBG.Rebuild the project as follows. The value
2here is an example:$ mkdir build; cd build $ cmake .. -DYKCS11_DBG=2 $ make $ sudo make install
Alternatively, use PKCS#11 Spy as provided by OpenSC, to inspect the PKCS#11 communication.
YKCS11 Functions and Objects
See the following tables of YKCS11 functions and objects.
Supported PKCS#11 Functions
| PKCS#11 Function | Mechanism | Comment |
|---|---|---|
| C_Initialize | ||
| C_Finalize | ||
| C_GetInfo | ||
| C_GetFunctionList | ||
| C_GetSlotList | ||
| C_GetSlotInfo | ||
| C_GetTokenInfo | ||
| C_GetMechanismList | ||
| C_GetMechanismInfo | ||
| C_InitToken | ||
| C_SetPIN | ||
| C_OpenSession | ||
| C_CloseSession | ||
| C_CloseAllSessions | ||
| C_GetSessionInfo | ||
| C_Login | ||
| C_Logout | ||
| C_CreateObject | With CKO_PRIVATE_KEY
or CKO_CERTIFICATE
|
|
| C_DestroyObject | ||
| C_GetObjectSize | ||
| C_GetAttributeValue | ||
| C_FindObjectsInit | ||
| C_FindObjects | ||
| C_FindObjectsFinal | ||
| C_EncryptInit | CKM_RSA_X_509,
CKM_RSA_PKCS,
CKM_RSA_PKCS_OAEP
|
With RSA keys only.
Uses OpenSSL
encryption functions
|
| C_Encrypt | With RSA keys only.
Uses OpenSSL
encryption functions
|
|
| C_EncryptUpdate | With RSA keys only.
Uses OpenSSL
encryption functions
|
|
| C_EncryptFinal | With RSA keys only.
Uses OpenSSL
encryption functions
|
|
| C_DecryptInit | CKM_RSA_X_509,
CKM_RSA_PKCS,
CKM_RSA_PKCS_OAEP
|
With RSA keys only. |
| C_Decrypt | With RSA keys only. | |
| C_DecryptUpdate | With RSA keys only. | |
| C_DecryptFinal | With RSA keys only. | |
| C_DigestInit | CKM_SHA_1, CKM_SHA256,
CKM_SHA384, CKM_SHA512
|
Uses OpenSSL digest
functions
|
| C_Digest | Uses OpenSSL digest
functions
|
|
| C_DigestUpdate | Uses OpenSSL digest
functions
|
|
| C_DigestFinal | Uses OpenSSL digest
functions
|
|
| C_SignInit | CKM_RSA_X_509,
CKM_RSA_PKCS,
CKM_SHA1_RSA_PKCS,
CKM_SHA256_RSA_PKCS,
CKM_SHA384_RSA_PKCS,
CKM_SHA512_RSA_PKCS,
CKM_RSA_PKCS_PSS,
CKM_SHA1_RSA_PKCS_PSS,
CKM_SHA256_RSA_PKCS_PSS,
CKM_SHA384_RSA_PKCS_PSS,
CKM_SHA512_RSA_PKCS_PSS,
CKM_ECDSA,
CKM_ECDSA_SHA1,
CKM_ECDSA_SHA224,
CKM_ECDSA_SHA256,
CKM_ECDSA_SHA384
CKM_EDDSA
|
|
| C_Sign | ||
| C_SignUpdate | ||
| C_SignFinal | ||
| C_VerifyInit | CKM_RSA_X_509,
CKM_RSA_PKCS,
CKM_SHA1_RSA_PKCS,
CKM_SHA256_RSA_PKCS,
CKM_SHA384_RSA_PKCS,
CKM_SHA512_RSA_PKCS,
CKM_RSA_PKCS_PSS,
CKM_SHA1_RSA_PKCS_PSS,
CKM_SHA256_RSA_PKCS_PSS,
CKM_SHA384_RSA_PKCS_PSS,
CKM_SHA512_RSA_PKCS_PSS,
CKM_ECDSA,
CKM_ECDSA_SHA1,
CKM_ECDSA_SHA224,
CKM_ECDSA_SHA256,
CKM_ECDSA_SHA384
CKM_EDDSA
|
Uses OpenSSL
verification
functions
|
| C_Verify | Uses OpenSSL
verification
functions
|
|
| C_VerifyUpdate | Uses OpenSSL
verification
functions
|
|
| C_VerifyFinal | Uses OpenSSL
verification
functions
|
|
| C_GenerateKeyPair | CKM_RSA_PKCS_KEY_PAIR_GEN,
CKM_EC_KEY_PAIR_GEN
CKM_EC_EDWARDS_KEY_PAIR_GEN
CKM_EC_MONTGOMERY_KEY_PAIR_GEN
|
Supported PKCS#11 Objects
Not all PKCS#11 Object types are implemented. This is a list of what is implemented and what it maps to.
| PKCS#11 | Supported CKK | Comment |
|---|---|---|
| CKO_PRIVATE_KEY | CKK_RSA,
CKK_EC,
CKK_ED_EDWARDS,
CKK_EC_MONTGOMERY
|
YubiKey 5.7 or later required for:
RSA 1024, 2048, 3072,
RSA 4096 with e=0x10001,
EC with secp256r1 and secp384r1,
ED2559, and X25519
|
| CKO_PUBLIC_KEY | Stored in X509 Certificates
|
|
| CKO_CERTIFICATE | X509 Certificates containing
either the public key or the
attestation certificate
|
|
| CKO_DATA |
Supported Attributes per Object Type
Attribute
|
Private
key object
|
Public
key object
|
Certificate
object
|
Data
object
|
|---|---|---|---|---|
| CKA_CLASS | X | X | X | X |
| CKA_ID | X | X | X | X |
| CKA_TOKEN | X | X | X | X |
| CKA_PRIVATE | X | X | X | X |
| CKA_LABEL | X | X | X | X |
| CKA_APPLICATION | X | |||
| CKA_OBJECT_ID | X | |||
| CKA_MODIFIABLE | X | X | X | X |
| CKA_COPYABLE | X | X | X | X |
| CKA_DESTROYABLE | X | X | X | X |
| CKA_VALUE | X | X | ||
| CKA_SUBJECT | X | |||
| CKA_ISSUER | X | |||
| CKA_SERIALNUMBER | X | |||
| CKA_CERTIFICATE_TYPE | X | |||
| CKA_TRUSTED | X | X | ||
| CKA_KEY_TYPE | X | X | ||
| CKA_SENSITIVE | X | X | ||
| CKA_ALWAYS_SENSITIVE | X | X | ||
| CKA_EXTRACTABLE | X | X | ||
| CKA_NEVER_EXTRACTABLE | X | X | ||
| CKA_LOCAL | X | X | ||
| CKA_ENCRYPT | X | X | ||
| CKA_DECRYPT | X | X | ||
| CKA_WRAP | X | X | ||
| CKA_WRAP_WITH_TRUSTED | X | X | ||
| CKA_UNWRAP | X | X | ||
| CKA_SIGN | X | X | ||
| CKA_SIGN_RECOVER | X | X | ||
| CKA_VERIFY | X | X | ||
| CKA_VERIFY_RECOVER | X | X | ||
| CKA_DERIVE | X | X | ||
| CKA_MODULUS | X | X | ||
| CKA_EC_POINT | X | X | ||
| CKA_EC_PARAMS | X | X | ||
| CKA_MODULUS_BITS | X | X | ||
| CKA_PUBLIC_EXPONENT | X | X | ||
| CKA_ALWAYS_AUTHENTICATE | X | X |
Key Alias per Slot and Object Type
Some applications, mainly Java, specify the keys to use by their key alias, which is referred to as a key’s label by PKCS#11. Objects’ labels as access by YKCS11 are fixed values and are unmodifiable. Following is the list of object labels according to their object type and the slot they reside in (See PIV Certificate Slots for the slot usage).
Slot
|
Private key
|
Public key
|
Certificate
|
Attestation
certificate
|
Data
object
|
|---|---|---|---|---|---|
| 9a | Private key
for PIV
Authentication
|
Public key
for PIV
Authentication
|
X.509
Certificate
for PIV
Authentication
|
X.509
Certificate
for PIV
Attestation 9a
|
X.509
Certificate
for PIV
Authentication
|
| 9c | Private key
for Digital
Signature
|
Public key
for Digital
Signature
|
X.509
Certificate
for Digital
Signature
|
X.509
Certificate
for PIV
Attestation 9c
|
X.509
Certificate
for Digital
Signature
|
| 9d | Private key
for Key
Management
|
Public key
for Key
Management
|
X.509
Certificate
for Key
Management
|
X.509
Certificate
for PIV
Attestation 9d
|
X.509
Certificate
for Key
Management
|
| 9e | Private key
for Card
Authentication
|
Public key
for Card
Authentication
|
X.509
Certificate
for Card
Authentication
|
X.509
Certificate
for PIV
Attestation 9a
|
X.509
Certificate
for Card
Authentication
|
| 82 | Private key
for Retired
Key 1
|
Public key
for Retired
Key 1
|
X.509
Certificate
for Retired
Key 1
|
X.509
Certificate
for PIV
Attestation 82
|
X.509
Certificate
for Retired
Key 1
|
| 83 | Private key
for Retired
Key 2
|
Public key
for Retired
Key 2
|
X.509
Certificate
for Retired
Key 2
|
X.509
Certificate
for PIV
Attestation 83
|
X.509
Certificate
for Retired
Key 2
|
| 84 | Private key
for Retired
Key 3
|
Public key
for Retired
Key 3
|
X.509
Certificate
for Retired
Key 3
|
X.509
Certificate
for PIV
Attestation 84
|
X.509
Certificate
for Retired
Key 3
|
| 85 | Private key
for Retired
Key 4
|
Public key
for Retired
Key 4
|
X.509
Certificate
for Retired
Key 4
|
X.509
Certificate
for PIV
Attestation 85
|
X.509
Certificate
for Retired
Key 4
|
| 86 | Private key
for Retired
Key 5
|
Public key
for Retired
Key 5
|
X.509
Certificate
for Retired
Key 5
|
X.509
Certificate
for PIV
Attestation 86
|
X.509
Certificate
for Retired
Key 5
|
| 87 | Private key
for Retired
Key 6
|
Public key
for Retired
Key 6
|
X.509
Certificate
for Retired
Key 6
|
X.509
Certificate
for PIV
Attestation 87
|
X.509
Certificate
for Retired
Key 6
|
| 88 | Private key
for Retired
Key 7
|
Public key
for Retired
Key 7
|
X.509
Certificate
for Retired
Key 7
|
X.509
Certificate
for PIV
Attestation 88
|
X.509
Certificate
for Retired
Key 7
|
| 89 | Private key
for Retired
Key 8
|
Public key
for Retired
Key 8
|
X.509
Certificate
for Retired
Key 8
|
X.509
Certificate
for PIV
Attestation 89
|
X.509
Certificate
for Retired
Key 8
|
| 8a | Private key
for Retired
Key 9
|
Public key
for Retired
Key 9
|
X.509
Certificate
for Retired
Key 9
|
X.509
Certificate
for PIV
Attestation 8a
|
X.509
Certificate
for Retired
Key 9
|
| 8b | Private key
for Retired
Key 10
|
Public key
for Retired
Key 10
|
X.509
Certificate
for Retired
Key 10
|
X.509
Certificate
for PIV
Attestation 8b
|
X.509
Certificate
for Retired
Key 10
|
| 8c | Private key
for Retired
Key 11
|
Public key
for Retired
Key 11
|
X.509
Certificate
for Retired
Key 11
|
X.509
Certificate
for PIV
Attestation 8c
|
X.509
Certificate
for Retired
Key 11
|
| 8d | Private key
for Retired
Key 12
|
Public key
for Retired
Key 12
|
X.509
Certificate
for Retired
Key 12
|
X.509
Certificate
for PIV
Attestation 8d
|
X.509
Certificate
for Retired
Key 12
|
| 8e | Private key
for Retired
Key 13
|
Public key
for Retired
Key 13
|
X.509
Certificate
for Retired
Key 13
|
X.509
Certificate
for PIV
Attestation 8e
|
X.509
Certificate
for Retired
Key 13
|
| 8f | Private key
for Retired
Key 14
|
Public key
for Retired
Key 14
|
X.509
Certificate
for Retired
Key 14
|
X.509
Certificate
for PIV
Attestation 8f
|
X.509
Certificate
for Retired
Key 14
|
| 90 | Private key
for Retired
Key 15
|
Public key
for Retired
Key 15
|
X.509
Certificate
for Retired
Key 15
|
X.509
Certificate
for PIV
Attestation 90
|
X.509
Certificate
for Retired
Key 15
|
| 91 | Private key
for Retired
Key 16
|
Public key
for Retired
Key 16
|
X.509
Certificate
for Retired
Key 16
|
X.509
Certificate
for PIV
Attestation 91
|
X.509
Certificate
for Retired
Key 16
|
| 92 | Private key
for Retired
Key 17
|
Public key
for Retired
Key 17
|
X.509
Certificate
for Retired
Key 17
|
X.509
Certificate
for PIV
Attestation 92
|
X.509
Certificate
for Retired
Key 17
|
| 93 | Private key
for Retired
Key 18
|
Public key
for Retired
Key 18
|
X.509
Certificate
for Retired
Key 18
|
X.509
Certificate
for PIV
Attestation 93
|
X.509
Certificate
for Retired
Key 18
|
| 94 | Private key
for Retired
Key 19
|
Public key
for Retired
Key 19
|
X.509
Certificate
for Retired
Key 19
|
X.509
Certificate
for PIV
Attestation 94
|
X.509
Certificate
for Retired
Key 19
|
| 95 | Private key
for Retired
Key 20
|
Public key
for Retired
Key 20
|
X.509
Certificate
for Retired
Key 20
|
X.509
Certificate
for PIV
Attestation 95
|
X.509
Certificate
for Retired
Key 20
|
| f9 | Private key
for PIV
Attestation
|
Public key
for PIV
Attestation
|
X.509
Certificate
for PIV
Attestation
|
X.509
Certificate
for PIV
Attestation f9
|
X.509
Certificate
for PIV
Attestation
|
YKCS11 Supported Applications
The YKCS11 module was tested with the following applications:
FireFox
With FireFox, it is possible to authenticate to websites and other web services with certificates stored on a smartcard and accessed through a PKCS#11 module. In order to do that, the PKCS#11 module needs to be added to FireFox as a Security Device. However, in order for FireFox to recognize the certificate in the smartcard, it needs to have previously imported its issuer certificate (typically a CA certificate) as a trusted authority.
Importing CA Certificate on FireFox

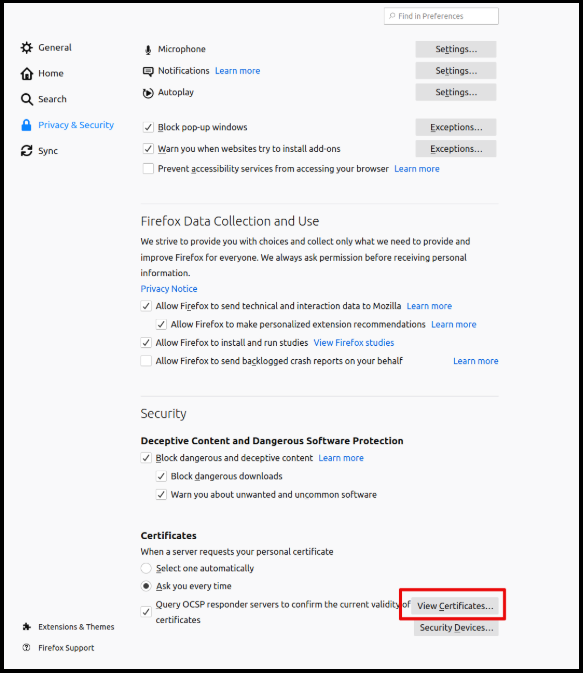

Open FireFox Certificate Manager. Go to Preferences → Privacy & Security → View Certificates.

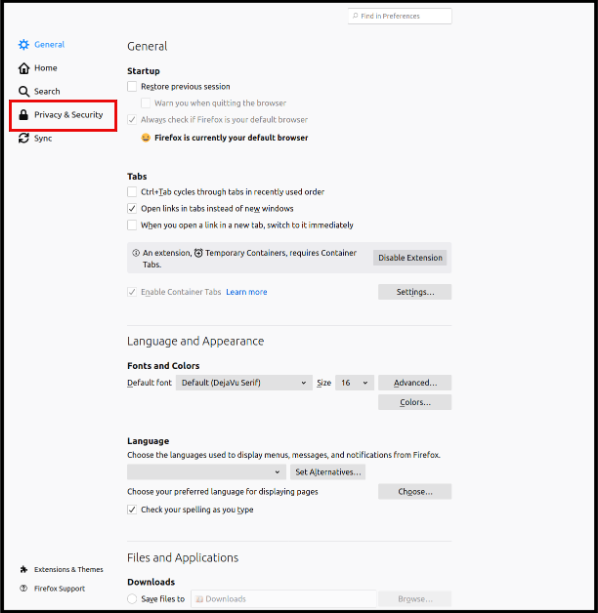

Select Privacy & Security
View Certificates

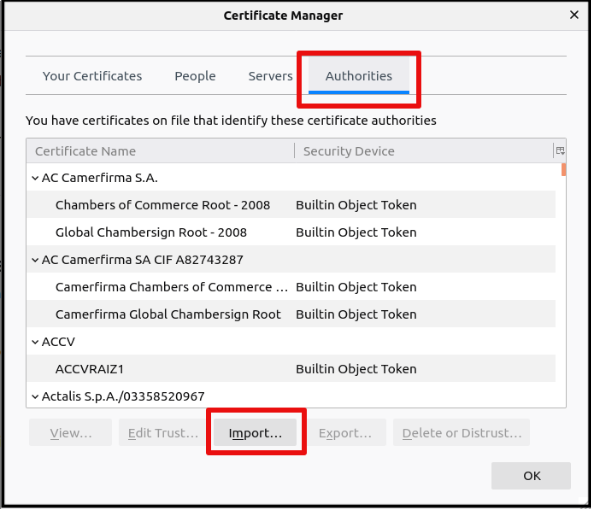

Go to Authorities and click Import.
Import Authority
Navigate to the issuer certificate and choose it.
Adding YKCS11 Security Device on FireFox

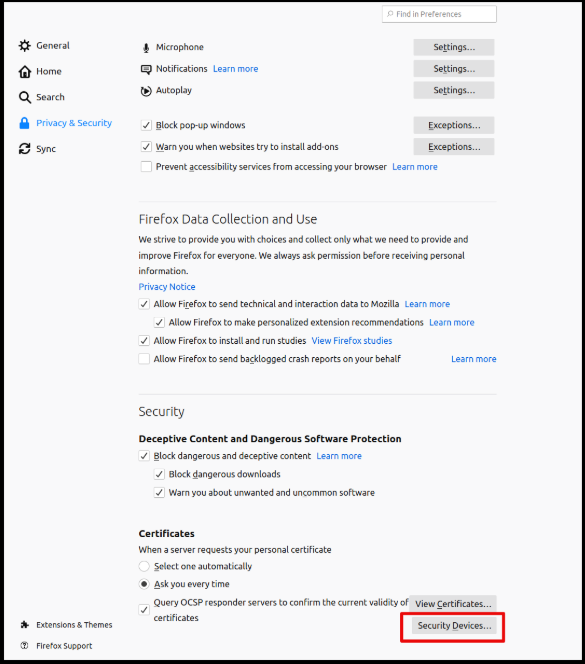

Open FireFox Device Manager. Go to Preferences → Privacy & Security → Security Devices.
View Security Devices
Click Load.
Load Security Devices

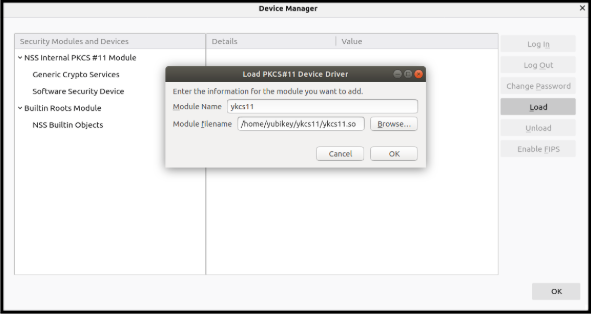

Choose a name for the YKCS11 module, navigate to libykcs11.so, and choose it, then click OK.
Security Devices Load Driver

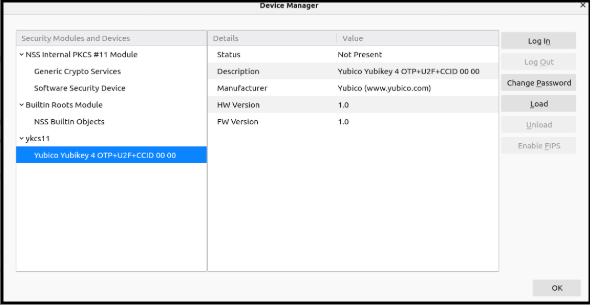

The YKCS11 module should now appear in the Security devices column on the left.
Device Manager Listing for Yubico Information
Viewing and Downloading a Certificate on FireFox
Caution
If the certificate issuer is not trusted (aka not imported) by FireFox, the certificate details only show an error message.
Open FireFox Certificate Manager. Go to Preferences → Privacy & Security → View Certificates.

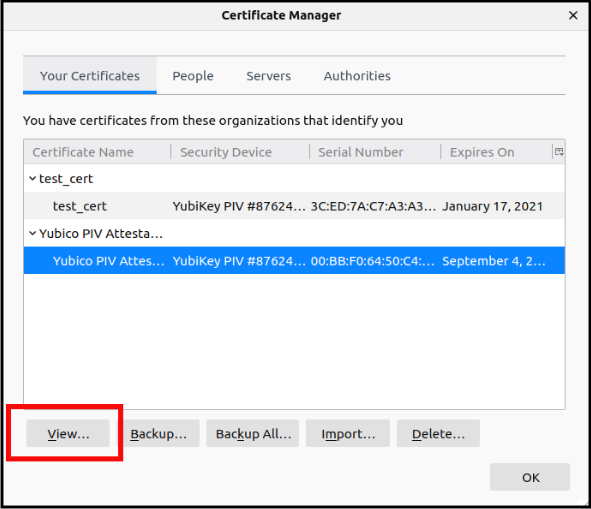

Highlight the certificate and click View. The certificate details are displayed in a FireFox tab.
Certificate Manager View
To download the certificate, find the download link in the certificate details tab. It is possible to download only the certificate or the entire certificate chain in PEM format.
Certificate Information Download
Other Functionality on FireFox
With FireFox, it is possible to access and download the certificate. It is also possible to change the PIV user pin with the Change Password button in the Certificate Manager.
Generally, FireFox has functionality to export the private key (with the Backup button in the Certificate Manager). This, however, fails because the YubiKey does not allow the private key to leave it.
Deleting a key through FireFox does not work either unless the user is logged in as an SO user.
Fortify
Fortify is a locally installed application that listens on a known TCP port and enables web applications to use smart cards, security tokens, and locally installed certificates. Fortify has native support for YubiKey’s PIV interface through the YKCS11 module.
Go to fortifyapp.com to download and then install the application specific to your platform.
When running the application, a small shield-shaped icon close to the start menu should appear.
Verify matching codes.

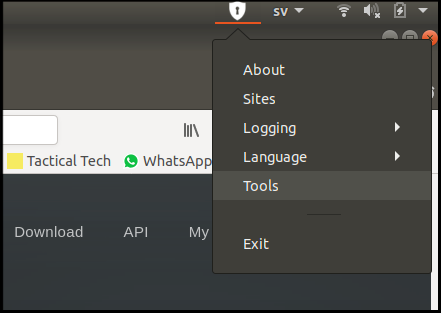

Click the Fortify icon and go to Tools. A browser opens with the Fortify webapp interface.
Fortify Tools Menu

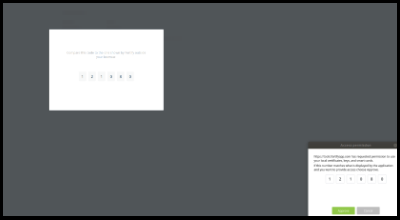

You are presented with a code inside the webpage and a code outside of it. If the codes match, click Approve.
Fortify Interface Verification
View stored YubiKey certificates. In the Fortify web interface:

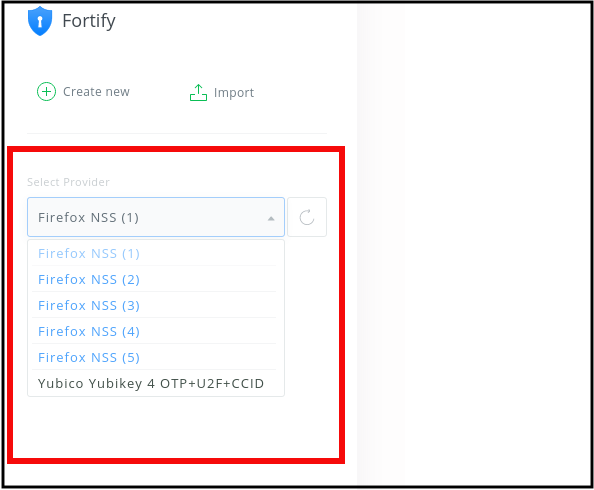

Select the Yubico provider.
Fortify Select Provider
At the prompt, enter the PIN of the PIV user.
Fortify PIN
In the panel, view the list of certificates stored in the YubiKey.
Fortify View Certificates
Tips for using Fortify
Fortify expects to find the YKCS11 module in the following locations:
- MacOS:
/usr/local/lib/libykcs11.dylib - Linux:
/usr/local/lib/libykcs11.so - Windows:
%WINDIR/System32/libykcs11-1.dll
The paths are specified in a file called card.json. On a Linux system, this file might reside in $HOME/.fortify/card.json.
Java Keytool
The YKCS11 module can be used with Java keytool through the SunPKCS11 provider that is shipped with Java by default. To configure the SunPKCS11 provider to use the YKCS11, create a configuration file, let’s call it sun_ykcs11.conf, with the following content:
name = ykcs11
library = /path/to/libykcs11.so
The name is an arbitrary string.
This configuration file should then be used as the provider’s argument parameter in the command line.
List Content
$ keytool -list -keystore NONE -storetype PKCS11
-providerClass sun.security.pkcs11.SunPKCS11 -providerArg /path/to/sun_ykcs11.conf
Where –
-keystore NONEindicates that the keys are not stored in a soft token, aka not a file.
-storetype PKCS11indicates that the keys are accessible through the PKCS#11 interface.
Signing a JAR File
To sign a jar file using jarsigner, specify the alias of the signing key. The aliases of the keys stored on the YubiKey PIV are fixed and unmodifiable. To view the list of key aliases:
- Use the YubiKey command,
keytool -list, shown in Example 1 above.- See YKCS11 Functions and Objects.
Example of signing a jar file with the key on slot 9c:
$ jarsigner -keystore NONE -storetype PKCS11
-providerClass sun.security.pkcs11.SunPKCS11
-providerArg /path/to/sun_ykcs11.conf lib.jar "X.509 Certificate for Digital Signature"
To display PKCS11 debug messages, add the parameter -J-Djava.security.debug=sunpkcs11:
$ jarsigner -verify -keystore NONE -storetype PKCS11
-providerClass sun.security.pkcs11.SunPKCS11
-providerArg /path/to/sun_ykcs11.conf lib.jar "X.509 Certificate for Digital Signature"
-J-Djava.security.debug=sunpkcs11\
The jarsigner command returns two files appearing under META-INF inside the jar file. One of them has the ending .SF and the other has the ending .EC or .RSA depending on the key type of the signing key.
To verify the signature of a jar file, run:
$ jarsigner -verify -keystore NONE -storetype PKCS11
-providerClass sun.security.pkcs11.SunPKCS11
-providerArg /path/to/sun_ykcs11.conf lib.jar "X.509 Certificate for Digital Signature"
OpenSC pkcs11-tool
The YKCS11 module works well with pkcs11-tool. Be aware though that older versions of OpenSC (like the ones available on Linux distributions) might produce errors when running some commands. If so, try again after installing a newer version.
Display Device Info
$ pkcs11-tool --module /path/to/libykcs11.so --show-info
Key Generation
Only the SO user is permitted to generate keys. The SO’s PIN is the PIV management key.
Generate an EC key in slot 9A using curve
secp384r1$ pkcs11-tool --module /path/to/libykcs11.so --login --login-type so --keypairgen --id 1 --key-type EC:secp384r1
Generate an EC key in slot 9E using curve
prime256v1$ pkcs11-tool --module /path/to/libykcs11.so --login --login-type so --keypairgen --id 4 --key-type EC:prime256v1
Generate an RSA key in slot 9C
$ pkcs11-tool --module /path/to/libykcs11.so --login --login-type so --keypairgen --id 2 --key-type rsa:2048
Signing
Signatures generated using pkcs11-tool can be verified using, for example, openssl.
To verify the signature with openssl, the public key needs to be extracted from the certificate. To do that, complete the steps:
- Export the certificate from the YubiKey using the YubiKey Manager,
ykman,yubico-piv-tool, FireFox or any other available tool. - If the certificate is not in
PEMformat, convert it intoPEMformat. - Extract the public key from the certificate. Run the following command:
$ openssl x509 -in cert.pem -pubkey -noout > pubkey.pem
The following are a few command line examples of signing data with pkcs11-tool and verifying the signature with openssl.
Sign data with an RSA key in slot 9E.
$ pkcs11-tool --module /path/to/libykcs11.so --sign --id 4 -i data.txt -o data.sig $ openssl rsautl -verify -in data.sig -inkey 9e_pubkey.pem -pubin
Sign data with an RSA key in slot 9C and SHA256.
$ pkcs11-tool --module /path/to/libykcs11.so --sign -m RSA-SHA256 --id 2 -i data.txt -o data.sig $ openssl dgst -sha256 -verify 9c_pubkey.pem -signature data.sig data.txt
Signing data with an EC key in slot 9A and SHA1.
$ pkcs11-tool --module /path/to/libykcs11.so --sign --id 1 -m ECDSA-SHA1 --signature-format openssl -i data.txt -o data.sig $ openssl dgst -sha1 -verify 9a_pubkey.pem -signature data.sig data.txt
Testing RSA Keys
At least one RSA key needs to already exist in the YubiKey for this test to work.
$ pkcs11-tool --module /path/to/libykcs11.so --login --test
Testing EC Keys
With the default installation of the YubiKey’s PIV, testing EC keys works only on slot 9C. This is because pkcs11-tool --test-ec assumes that the same user can both generate a keypair and sign data. This, however, is not allowed by the YubiKey, which implements separation of duty more strictly. By default, however, the key that resides on slot 9C has its CKA_ALWAYS_AUTHENTICATE attribute set to True, which prompts the user for the PIN during the different operations, and so the right PIN can be entered at the right time.
$ pkcs11-tool --module /path/to/libykcs11.so --login
--login-type so --test-ec --id 2 --key-type EC:secp256r1
OpenSSH
Keys stored on the YubiKey can be used to login to remote SSH servers. This can be done either with the YubiKey PIV application using, for example, OpenSSH, or with the YubiKey PGP application.
Following are some command line examples of using OpenSSH with the Yubikey PIV application through YKCS11. For guides on how to use the YubiKey PGP application with SSH, see SSH authentication.
To direct OpenSSH to use keys stored on the YubiKey, specify the YKCS11 module with the -I option in the command.
$ ssh -I /path/to/libykcs11.so git@github.com
To download the public key accessible through the YKCS11 module:
$ ssh-keygen -D /path/to/libykcs11.so
OpenSSL via PKCS11 Engine
The easiest way to get OpenSSL to work with YKCS11 via engine_pkcs11 is by using the pll-kit proxy module.
To get the OpenSSL PKCS11 engine to use the Yubico YKCS11 module specifically, set the environment variable PKCS11_MODULE_PATH to point to libykcs11.so module.
For more details on PKCS11 engine, see OpenSC libp11.
For more details on how to configure OpenSSL PKCS11 engine for Yubico supported modules, see OpenSSL with YubiHSM 2 via engine_pkcs11 and yubihsm_pkcs11.
Data Signing with OpenSSl
$ PKCS11_MODULE_PATH=/path/to/libykcs11.so openssl rsautl -engine pkcs11 -keyform engine -inkey "pkcs11:object=Private key for PIVAuthentication;type=private" -sign -in data.txt -out data.sig
Where – object=Private key for PIVAuthentication specifies the alias (or label) of the private key to be used. The aliases of the keys stored on the YubiKey PIV are fixed and unmodifiable. See YKCS11 Functions and Objects.
type=private specifies that the type of the object is a private key (CKA_CLASS = CKO_PRIVATE_KEY)
For more parameters to specify keys see RFC7512.
Caution
Be aware that the order of the parameters in the command line can be important.
